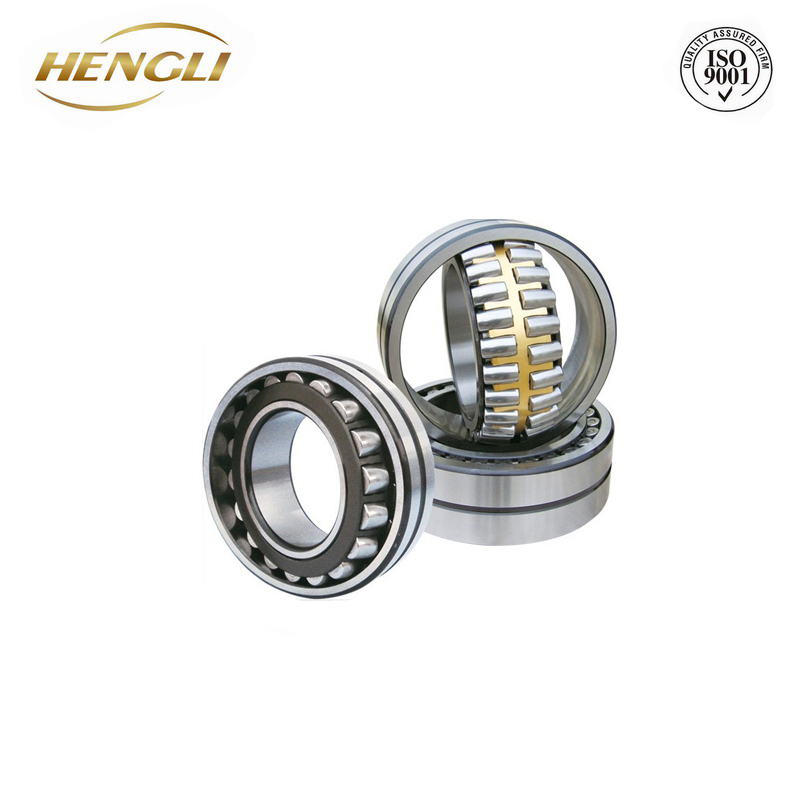

Spherical Roller Bearings
Spherical Roller Bearings
213.../213...K/213...W33

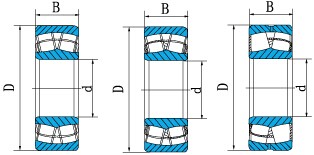

| Bearing No. | Boundary Dimensions (mm) | Basic Load Rating (KN) | Mass |
| d | D | B | C | Co | kg |
| 21307 | 21307 K | 21307 W33 | 35 | 80 | 21 | 70.70 | 73.30 | 0.547 |
| 21308 | 21308 K | 21308 W33 | 40 | 90 | 23 | 87.60 | 92.00 | 0.751 |
| 21309 | 21309 K | 21309 W33 | 45 | 100 | 25 | 105.00 | 112.00 | 1.010 |
| 21310 | 21310 K | 21310 W33 | 50 | 110 | 27 | 121.00 | 129.00 | 1.300 |
| 21311 | 21311 K | 21311 W33 | 55 | 120 | 29 | 141.00 | 152.00 | 1.660 |
| 21312 | 21312 K | 21312 W33 | 60 | 130 | 31 | 165.00 | 175.00 | 1.990 |
| 21313 | 21313 K | 21313 W33 | 65 | 140 | 33 | 186.00 | 197.00 | 2.450 |
| 21314 | 21314 K | 21314 W33 | 70 | 150 | 35 | 206.00 | 223.00 | 2.980 |
| 21315 | 21315 K | 21315 W33 | 75 | 160 | 37 | 249.00 | 270.00 | 3.630 |
| 21316 | 21316 K | 21316 W33 | 80 | 170 | 39 | 272.00 | 306.00 | 4.290 |
| 21317 | 21317 K | 21317 W33 | 85 | 180 | 41 | 297.00 | 351.00 | 5.190 |
| 21318 | 21318 K | 21318 W33 | 90 | 190 | 43 | 320.00 | 387.00 | 6.090 |
| 21319 | 21319 K | 21319 W33 | 95 | 200 | 45 | 366.00 | 500.00 | 7.150 |
| 21320 | 21320 K | 21320 W33 | 100 | 215 | 47 | 397.00 | 546.00 | 8.810 |
| 21322 | 21322 K | 21322 W33 | 110 | 240 | 50 | 460.00 | 634.00 | 9.460 |
